Rimlock Range
The Rimlock range is the most popular key entry device for medium security application. The Rimlock is self-handed, bi-directional, compatible with rim cylinders from all leading manufacturers and providing latching and auto-deadlocking upon door closure.
Exit by thumbturn, or optional key control. The robust design and stainless steel construction of the Rimlock range will assist in protecting your facility and provide durability.
Supplied with stainless steel mounting plate, outward opening strike plate and machine screw fixings for steel doors as standard. Cylinder and keys to be ordered separately if required.
The modular design enables the product to be self-handing and bi-directional for ease of installation.

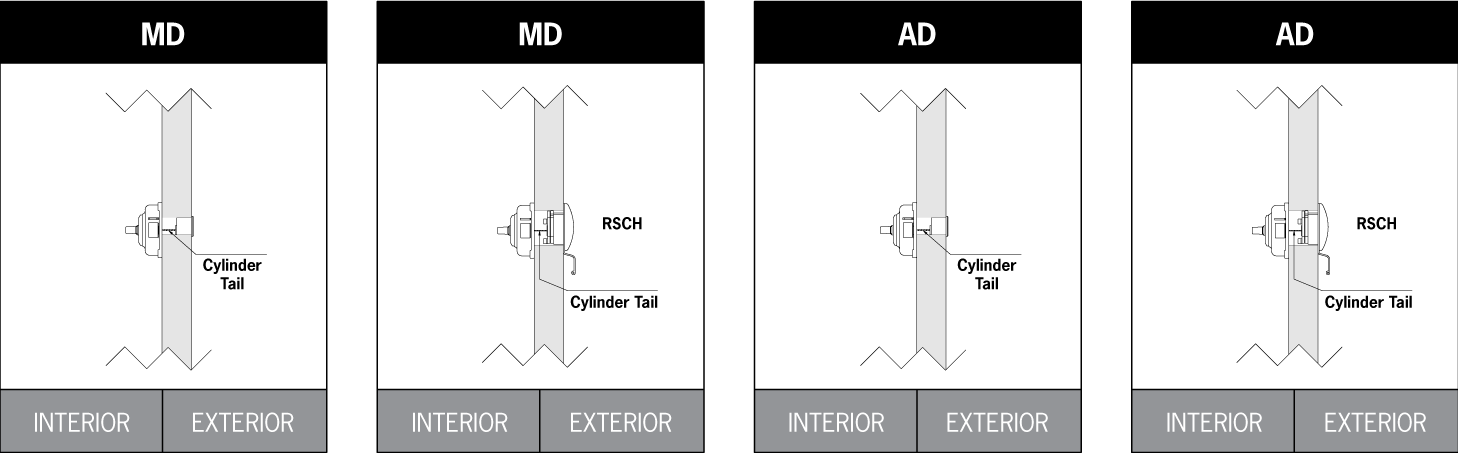

OPERATION
Entry Method: Using external key cylinder to retract latch/ deadbolt.
Exit Method: Thumturn to retract latch bolt/ dead bolt.
FEATURES
Compatible with a range of MICO external key access devices, as well as hasp and staples, and padlockable cylinder covers.
Integrated manual deadlocking function.
Modular design.
Stainless steel mounting plate, outward opening strike plate, round rim cylinder guard and steel door machine screw fixings supplied as standard.
BENEFITS
- Secure modular design ideally suited for prefabricated buildings, protective enclosures and electricity substations.
- Easy-to-use secure locking system.
- Self-handing and bi-directional, allowing for easy installation.
- Rated up to LPS 1175 SR2 on compatible doorsets with additional external cylinder guard protection.
- BSEN 1670 Grade 5 corrosion resistance.
- Stainless steel construction.
ADDITIONAL OPTIONS
RSCH - External cylinder guard protection (LPS 1175 SR2 protection on compatible doorsets)
Keep - For holding the Rimlock latch for inward-opening doors.
MICO Padlockable Cylinder Cover – Option for external access.
H&S SR1/SR2 – Options for external access.
BSM – Bolt Status Microswitch to allow for electrical monitoring of latch bolts.
Woodscrew Fixing Pack – Designed for effective installation on timber doors.
External access available via wide range of Key Cylinder profiles and manufacturers.
Supplied to suit Round Rim Cylinder as standard. Euro-profile and Scandinavian Oval Rim available on request.
Our Rimlock range challenges the standard of affordable stainless steel rim locks for commercial applications.
Rim locks have always been popular within residential environments due to their ease of operation and installation. However, they have always been considered too weak to offer the necessary level of security for commercial applications. Designed with commercial properties, remote buildings, and cabinets in mind, our range proves you can have a low-cost, highly effective, easy-to-install security rim lock at these locations, too.
Made from full stainless steel with a class-leading build quality, our corrosion-resistant rim locks have been accredited by Secured by Design and tested up to LPS 1175: Issue 8 Security Rating G1*, LPS 1175: Issue 7 SR3*, and LPS 1673 D60E* with the UK’s leading door and cabinet manufacturers, offering peace of mind and exceptional security for less.
The Rimlock range comes in two locking variants, manual deadlocking and auto deadlocking and suits round rim cylinders from all leading manufacturers. Each Rimlock can be enhanced with the MICO RSCH cylinder guard.
*Tested and certified as part of a complete doorset.
