Modula Manual Deadlocking

  • modula-md4.png
The MICO Modula MD Range of single-point, mortice fitted locking devices offers manual deadlocking operation, permitting free passage during working hours and deadlocking via key or thumbturn at the close of business.

The MD Range can also be specified with SATE single action to escape via push pad, panic bar or sprung lever handle to meet the mandatory BS EN 179 Emergency Escape and BS EN 1125 Panic Escape standards.

External key access is provided as standard on the MD Range with optional PAS 24 or LPS 1175 SR2 rated cylinder guard protection.

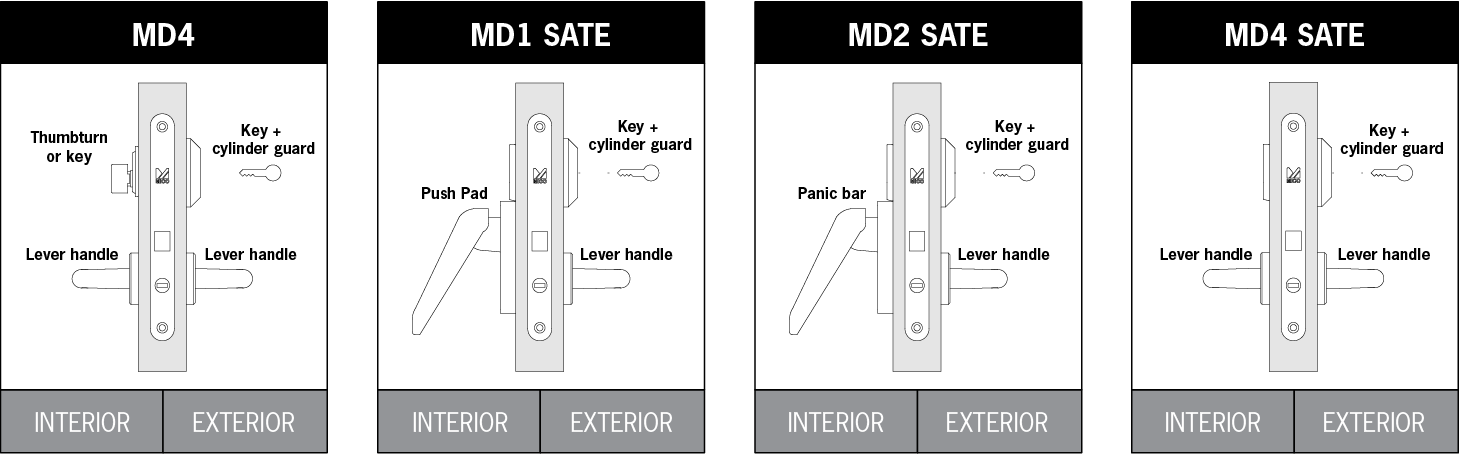

OPERATION

Entry Method: Mechanical key entry via external Euro cylinder and Lever.

Exit Method: Thumbturn or Euro-profile key cylinder and lever handle or SATE single handed means of escape at all times from inside via push pad, panic bar or emergency escape sprung lever.

FEATURES

  • Tested to over 1,000,000 cycles

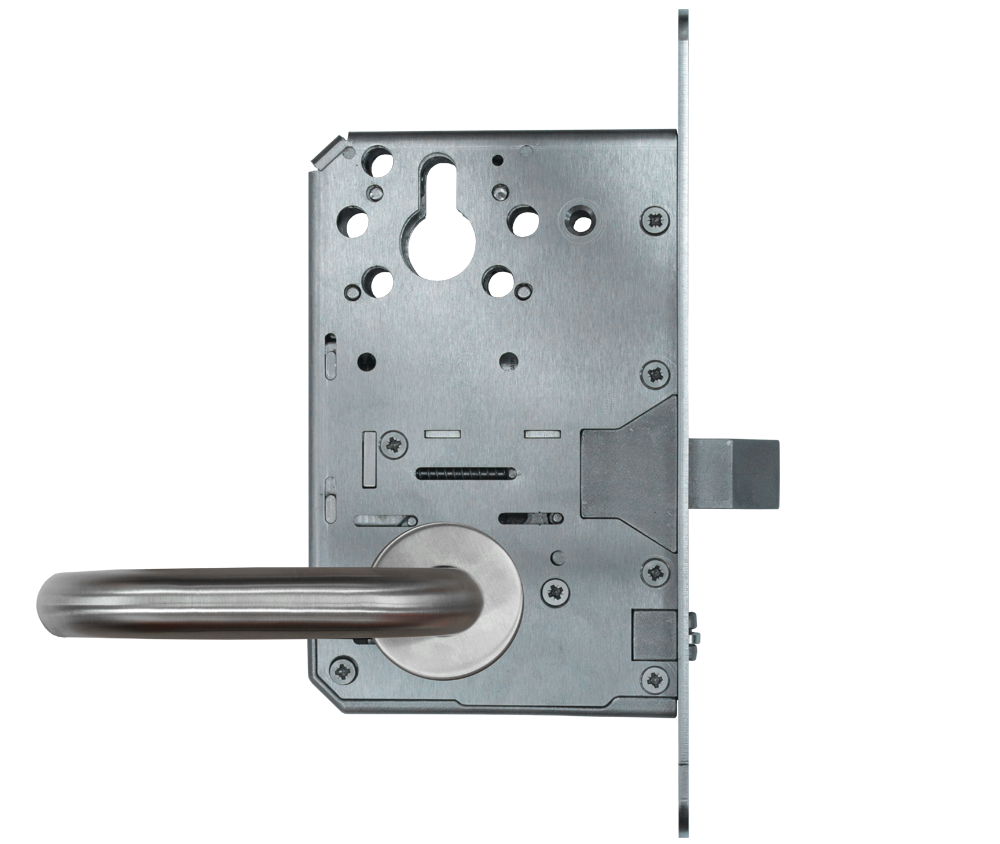

  • Mortice fitted
  • Adjustable roller bolt snib to take up variants in frame gap
  • Manual deadlocking upon door closure
  • Optional Bolt & Deadlock status micro-switches
  • RTE - Request to exit available on request

BENEFITS

  • Robust, heavy duty, mortice fitted lock case and furniture design for high traffic usage

  • Built in anti-thrust mechanism for enhanced security

  • Emergency escape versions fully tested and certified to BS EN 179:2008 and CE/UKCA Marked

  • Panic escape versions fully tested and certified to BS EN 1125:2008 and CE/UKCA Marked

  • External Cylinder protection options to meet PAS24 or LPS 1175 SR1 & SR2 on selected doorsets
