Modula Electro-Mechanical
The MICO Modula EM Range of single-point, mortice fitted, fail secure electro-mechanical locking devices are suitable for use with all proprietary 12v access control system application where high security is an important consideration.

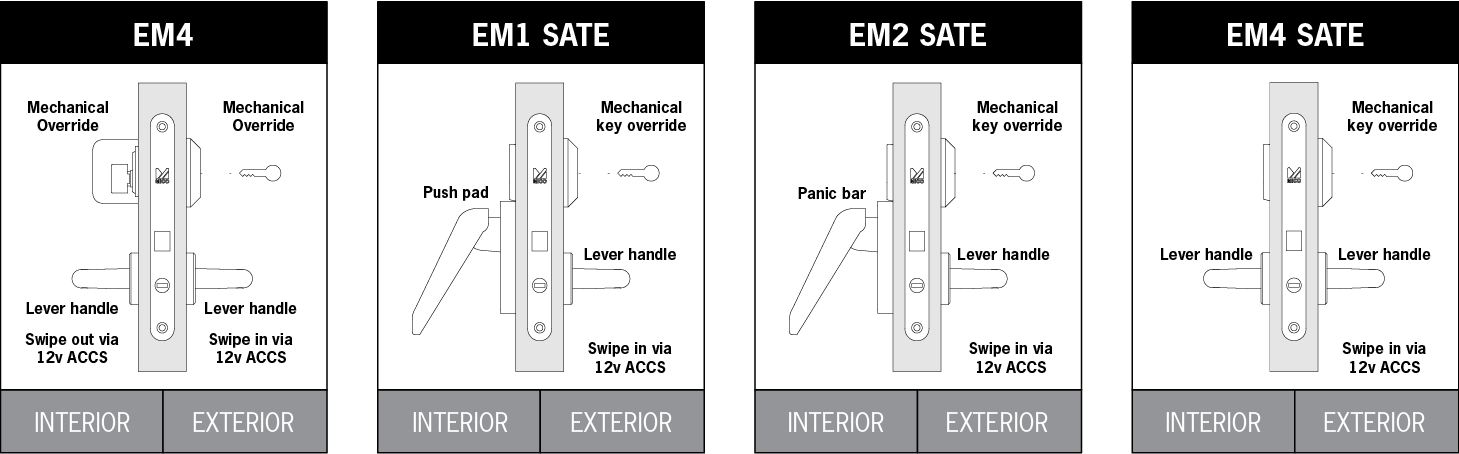

The EM Range can be specified in either a swipe in/swipe out access control configuration or with external swipe in and internal SATE single action to escape via push pad, panic bar or sprung lever handle to meet the mandatory BS EN 179 Emergency Escape and BS EN 1125 Panic Escape standards.
External mechanical key override is provided as standard on the EM Range with optional PAS24 or LPS 1175SR2 rated cylinder guard protection.
The EM Range can be specified in either a swipe in/swipe out access control configuration or with external swipe in and internal SATE single action to escape via push pad, panic bar or sprung lever handle to meet the mandatory BS EN 179 Emergency Escape and BS EN 1125 Panic Escape standards.
External mechanical key override is provided as standard on the EM Range with optional PAS24 or LPS 1175SR2 rated cylinder guard protection.
OPERATION
Entry Method: Swipe in access control with sprung lever handle plus mechanical Euro-profile key override function.
Exit Method: Swipe out access control with lever handle plus mechanical breakdome/thumbturn/lever override function. Optional SATE single handed means of escape at all times from inside via push pad, panic bar or emergency escape sprung lever.
Exit Method: Swipe out access control with lever handle plus mechanical breakdome/thumbturn/lever override function. Optional SATE single handed means of escape at all times from inside via push pad, panic bar or emergency escape sprung lever.
FEATURES
- Tested to over 1,000,000 cycles
- Mortice fitted
- Adjustable roller bolt snib to take up variants in frame gap
- Electro-mechanical locking
- Bolt & Deadlock status micro-switch fitted as standard
- RTE - Request to exit available on request
BENEFITS
Robust, heavy duty, mortice fitted lock case and furniture design for high traffic usage
Built in anti-thrust mechanism for enhanced security
Emergency escape versions fully tested and certified to BS EN 179:2008 and CE/UKCA Marked
Panic escape versions fully tested and certified to BS EN 1125:2008 and CE/UKCA Marked
External Cylinder protection options to meet PAS24 or LPS 1175 SR1 & SR2 on selected doorsets
