EVO Electro-Mechanical
The MICO EVO EM Range of Multipoint, surface fitted, fail secure Electro-Mechanical (EM) locking devices are suitable for use with all proprietary 12v access control system application where high security is an important consideration.
The EM Range can be specified in either a swipe in/swipe out access control configuration or with external swipe in and internal single action to escape (SATE) via push pad or heavy duty lever to meet the mandatory BS EN 179 Emergency Escape standards.
External mechanical key override is provided as standard on the EM Range from LPS 1175 SR2 up to SR6 rated cylinder guard protection.
The EM Range can be specified in either a swipe in/swipe out access control configuration or with external swipe in and internal single action to escape (SATE) via push pad or heavy duty lever to meet the mandatory BS EN 179 Emergency Escape standards.
External mechanical key override is provided as standard on the EM Range from LPS 1175 SR2 up to SR6 rated cylinder guard protection.
OPERATION

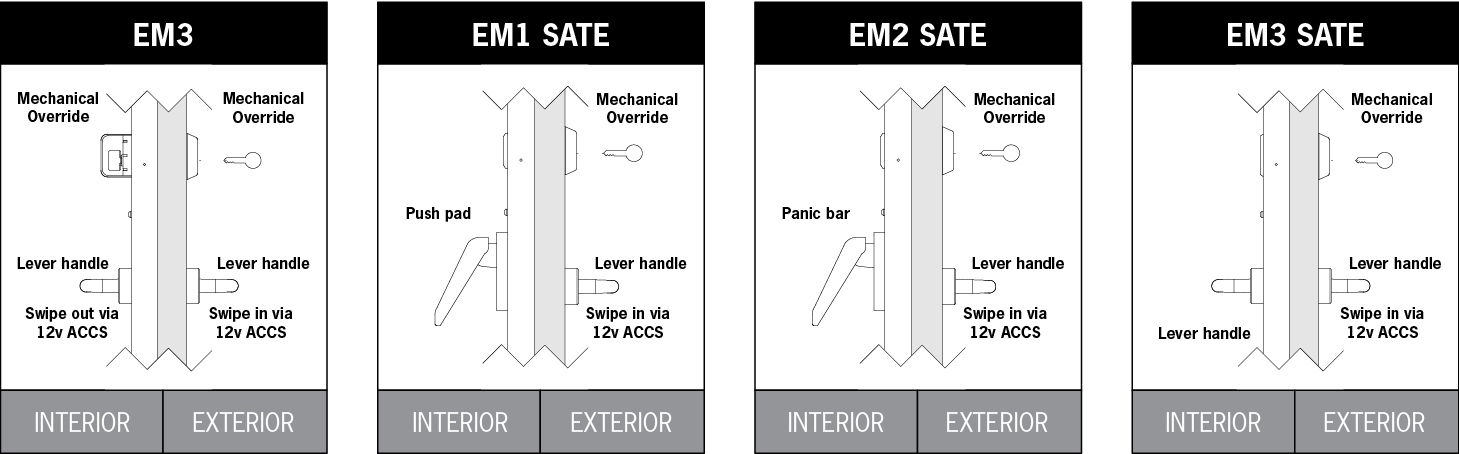

Entry Method: Swipe in access control with heavy duty lever handle. Mechanical key override fitted as standard.
Exit Method: Swipe out access control with heavy duty lever handle plus mechanical breakdome/thumbturn/ lever override function. Optional SATE - single action to escape at all times via push pad or heavy duty lever handle.
Exit Method: Swipe out access control with heavy duty lever handle plus mechanical breakdome/thumbturn/ lever override function. Optional SATE - single action to escape at all times via push pad or heavy duty lever handle.
FEATURES
- Tested to over 1,000,000 cycles
- Surface fitted
- Electro-mechanical locking
- 2 & 3 point bolting options
- Optional Bolt & Deadlock status micro-switch
BENEFITS
- Tested and approved up to LPS 1175 SR6
- Emergency escape versions fully tested and certified to BS EN 179:2008 and CE Marked
