USCH 2, 3, 4 Cylinder Protection

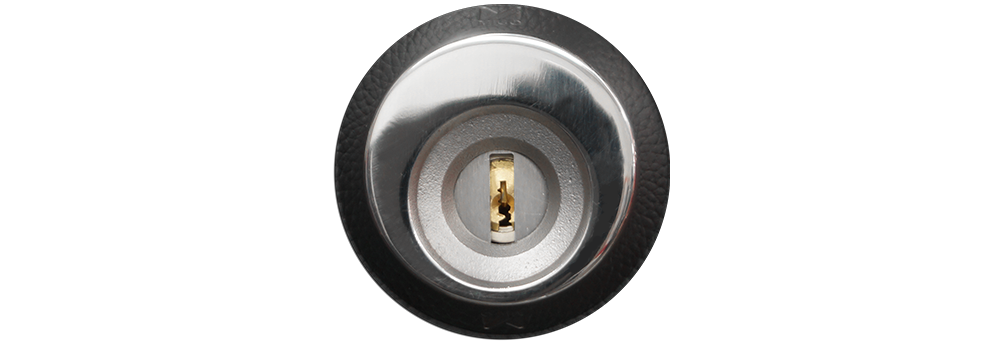

  • cylinder-guard-usch3-keyhole.png

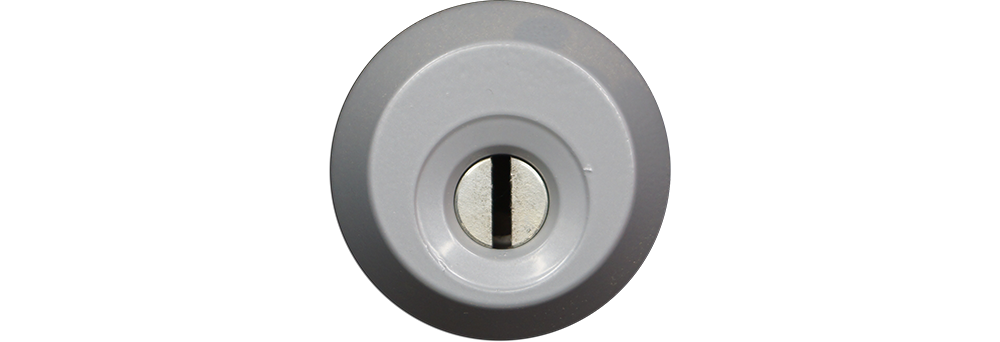

  • cylinder-guard-usch4.png

The MICO external locking attachment cylinder guards (USCH) are designed to shield and securely house the key cylinder, protecting it from a sustained, targeted attack.

Designed to support the range of MICO Multipoint and single-point deadlocking systems, the cylinder guard provides further protection by using a secure cylinder tail to connect the key cylinder to the locking unit.

The USCH cylinder guards have been tested and approved on selected doorsets to LPS 1175 SR2, SR3 and SR4 standards, and each come with a heavy-duty external lever handle as standard.

OPERATION

Cylinder guards are fitted over a Scandinavian Oval Rim, Euro-profile, or Round Rim key cylinder, and provide external protection from a physical attack. Entry and exit methods are the same as the locking system they are connected to, using the key cylinder and lever handle.

FEATURES

  • Supplied with heavy duty external lever handle, with ergonomic cranked handle also available.
  • Range of guards have been tested and approved to LPS 1175 SR2, SR3 and SR4 on selected doorsets, providing varying levels of security.
  • Designed for use with Scandinavian Oval Rim, Euro profile or Round Rim cylinders.

BENEFITS

  • The MICO external cylinder guards offer protection for one of the most target parts of a locking system from physical attack.
  • Cylinder guards are made from bespoke materials to help resist extended drilling attacks.
  • Compatible with all MICO multipoint and single point deadlocking systems.
  • Versatile applications that protect from a range of different physical entry methods from the opportunistic to more sustained professional attacks using power tools.

OPTIONS

Designed for use with Scandinavian Oval Rim cylinders as standard, but are also compatible with Euro profile and Round Rim cylinders on selected lock ranges.

USCH 2 – SR2 rated cylinder guard (on selected doorsets) with heavy duty external lever handle.

USCH 3 – SR3 rated cylinder guard (on selected doorsets) with heavy duty external lever handle.

USCH 4 – SR4 rated cylinder guard (on selected doorsets) with heavy duty external lever handle.

CHDL – Cranked handle for ergonomic, lighter operation.

  • Gallery Item 1 copy copy
This is a combined performance table – please call our sales team for more specific information.
