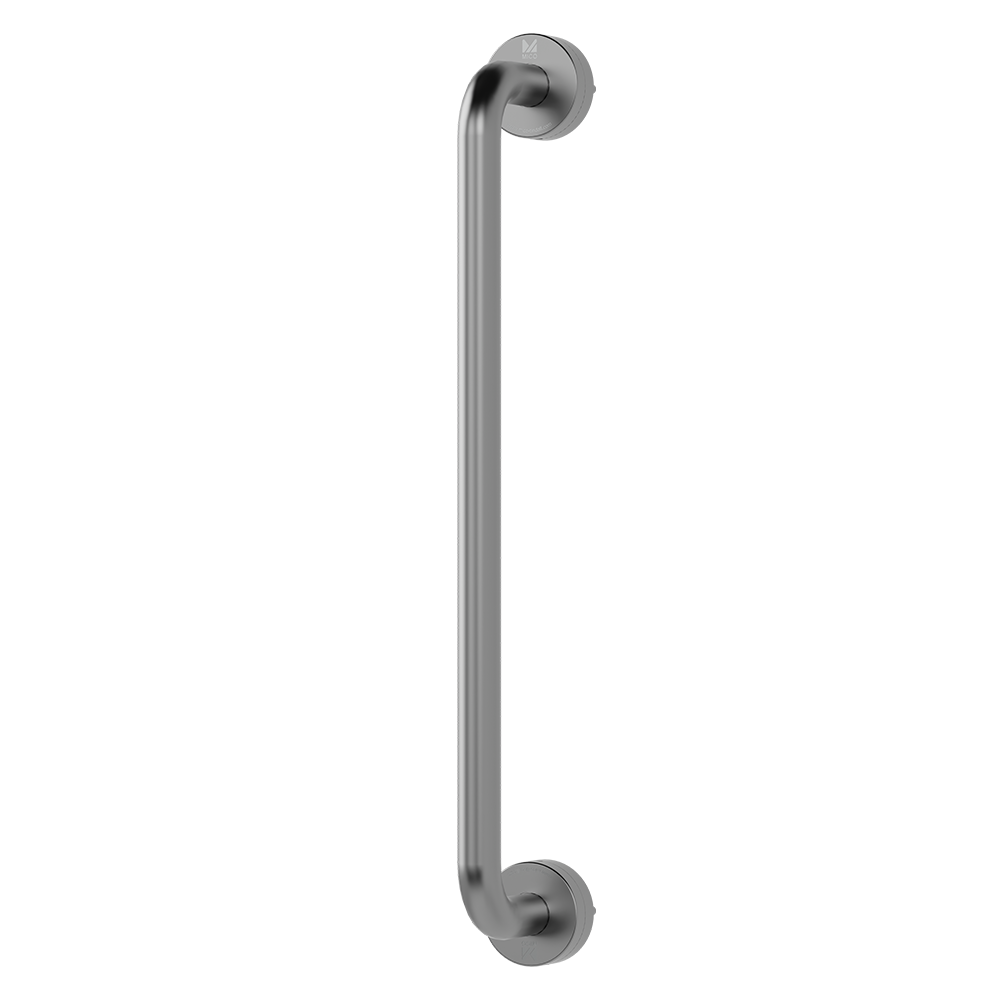

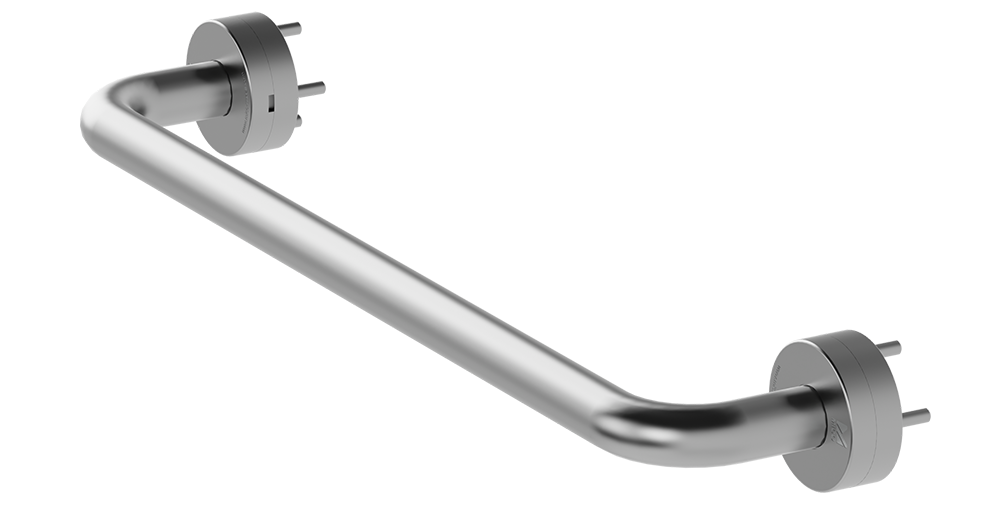

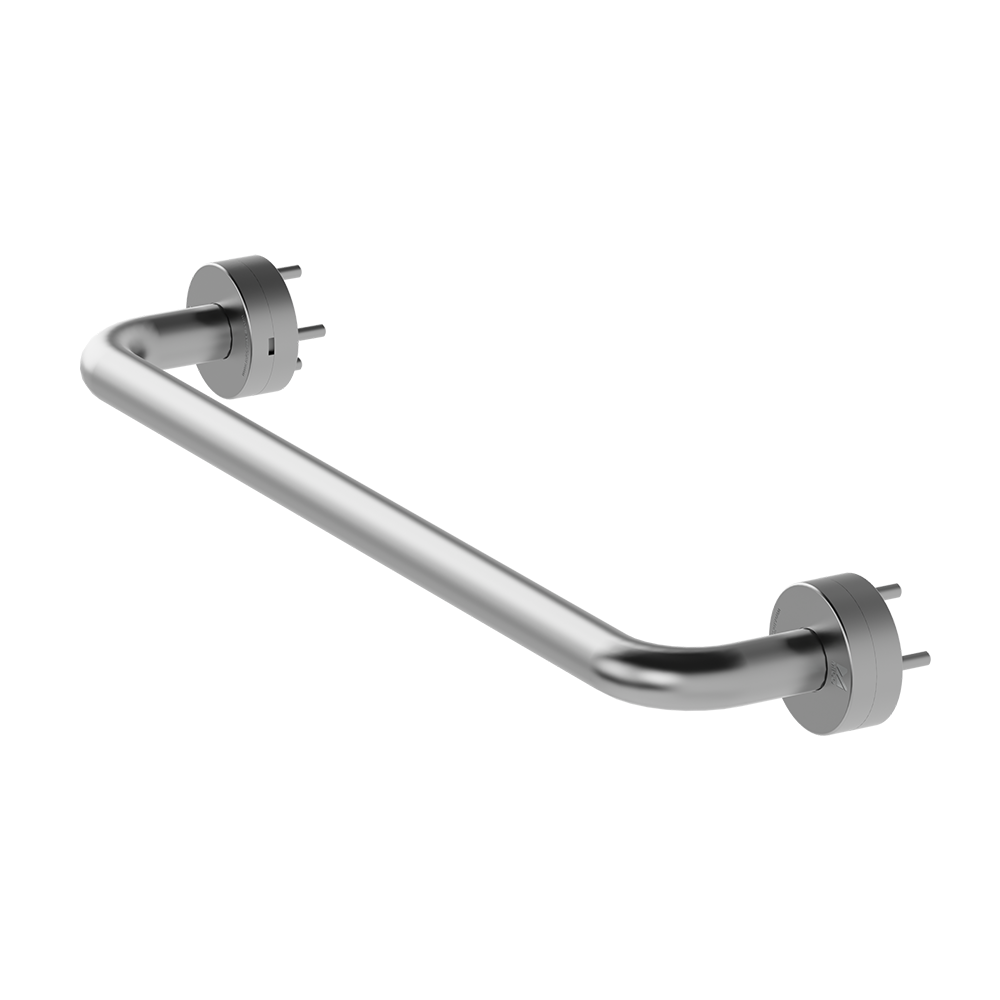

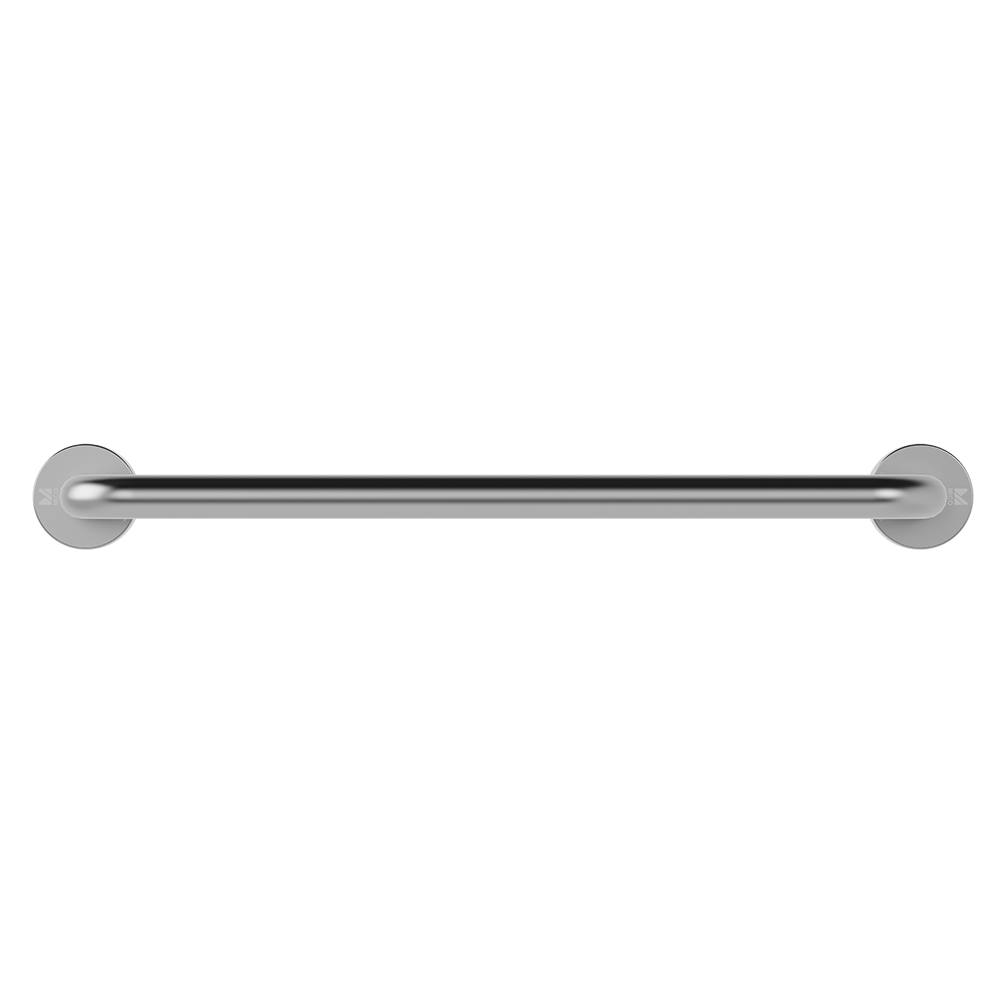

D Handle
Part of our Heavy-Duty Handle range, the D Handle range is a set of heavy-duty handles designed to reduce pressure on the lever handle for oversized, heavyweight doorsets.
Available in four distinct sizes, 150 mm, 225 mm, 300 mm and 425 mm, the D Handle suits a wide range of applications in commercial, industrial and remote installations. The flexible footprint offers surface-mounted singular handle, bolt-through, and back-to-back options to meet both new installation and retrofit requirements.
The high-quality stainless steel construction withstands physical attacks, vandalism, and corrosion, while the brushed finish suits a range of styles, from security doors to modern office interiors.
OPERATION
D Handles are non-handed and are simply pulled or pushed to open or close the door.
FEATURES
Heavy-duty endurance to reduce pressure on the lever handle for oversized, heavyweight doorsets
Surface-mounted singular handle, bolt-through, and back-to-back designs available
Available in four distinct sizes: 150 mm, 225 mm, 300 mm, and 425 mm
Meets the dimensional requirements of BS 8300-1
Brushed Grade 316 stainless steel construction as standard
BENEFITS
Suitable for hostile and remote external environments
EN 1670:Grade 5 corrosion resistance
Tough, hard-wearing stainless steel construction
Ergonomic, user-friendly operation
OPTIONS
Singular handle: A singular D Handle fixed to the door’s surface on a mounting plate.
Bolt-through: A singular D Handle fixed directly into the door leaf.
Back-to-back: Two D Handles fixed to the door’s surface, each mounted on an individual plate on each side of the door.
As our D Handles are suitable for both timber and steel doorsets, we supply stainless steel machine screws and woodscrew fixings as standard.
D HANDLE
TECHNICAL DRAWINGS
CODING SYSTEM
The MICO D Handle range has a simple code that covers the chosen type of handle.
Example Order Code –
SINGLE D HANDLE FRONT FIX – 150 MM
